Inside a modern fiberglass mesh production line: shop-floor notes, specs, and what to watch
Walk any factory floor in Anping County—yes, the wire mesh capital—and you’ll hear looms clacking with a steady confidence. Hongke’s Fiberglass Woven Roving Machine is one of those dependable workhorses. Origin matters here: Zhongzhangzhuang Development Zone, Anping, Hengshui, Hebei, where people actually still talk about tension shafts over tea. To be honest, that local know‑how shows up in uptime and fabric consistency.
What’s trending
Three things: higher loom speeds without fuzz breakage, better alkali retention for ETICS/EIFS, and smarter creels. Actually, customers keep asking for quick changeovers between 145 g/m² façade mesh and heavier 300 g/m² marble backing fabric—so flexibility beats pure speed most days.
Process in the real world

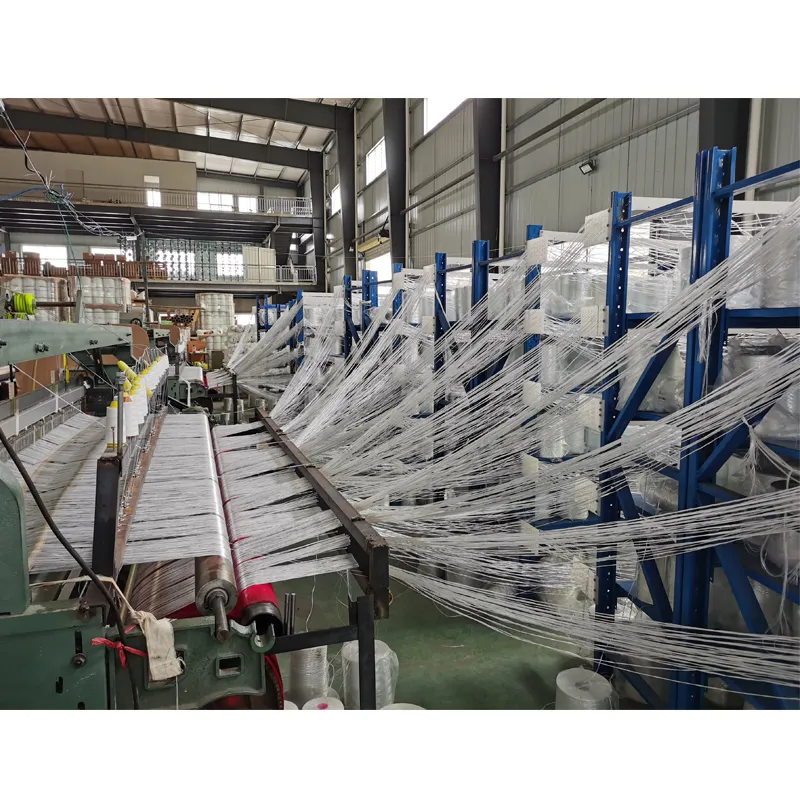

Materials: E-glass or AR-glass yarn (≈14–16% ZrO₂ for alkali resistance), with sizing tuned for weaving and later coating. Method: from spinning frame through porcelain eye steel buckle, around the tension shaft (half wrap), half wrap on the false warp axis, then into the weaving machine via the rear beam shaft—plain weave for stable, square mesh. Often followed by an acrylic/latex coating and oven set to lock alkali resistance and hand feel.

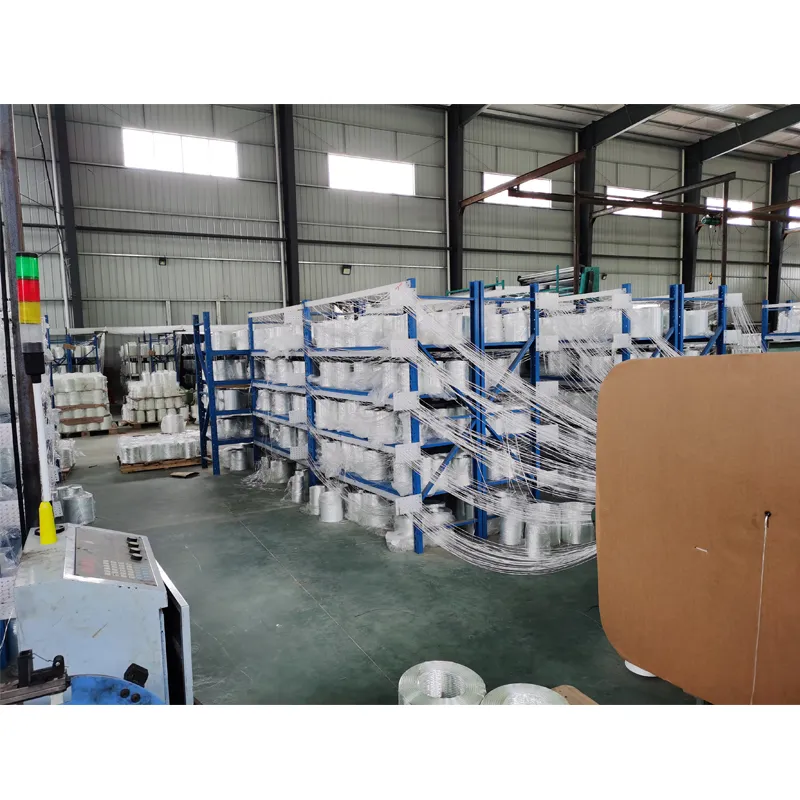

- Yarn prep → creel/guide ceramics → tension/false warp axis → weaving (788 or high‑speed) → edge binding → optional coating/drying → roll.
- QC: tensile (warp/weft), alkali retention, mass per area, mesh opening, width, and coating pick‑up.

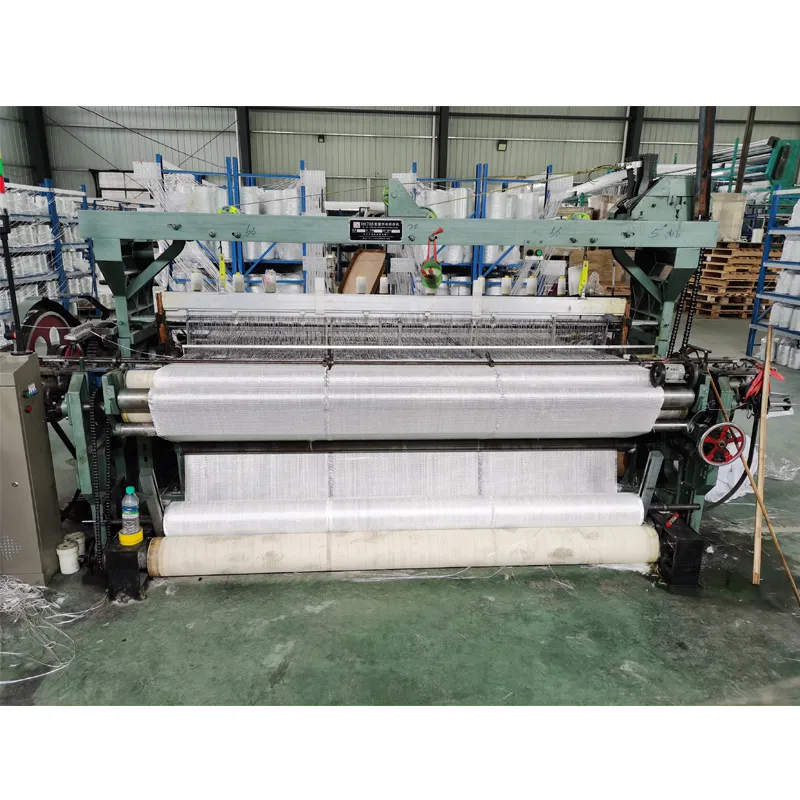

Product snapshot (Hongke Fiberglass Woven Roving Machine)
| Parameter | Spec (≈, real-world use may vary) |
|---|---|
| Models | 788 weaving machine; High‑speed weaving machine |
| Reed width / Fabric width | 1.2–2.6 m / up to 2.5 m |
| Nominal output | ≈ 70–180 m²/h depending on GSM and mesh size |
| Yarn range | E‑glass, AR‑glass; 68–600 tex |
| Tension control | Half‑wrap tension shaft + false warp axis; optional servo let‑off |
| Automation | PLC + HMI, stop‑motion, broken‑end detection |
Where the mesh goes
ETICS/EIFS façade systems, interior wall crack control, waterproofing membranes, gypsum board joints, PCB prepreg support, marble/stone backing, even grinding‑wheel base cloth. Service life in façade systems typically 25–30 years with proper alkali retention and coating.
Testing, standards, and a bit of data
Common targets we see: warp/weft tensile ≥ 1,750 N/50 mm post‑alkali per ETICS guidance; alkali retention ≥ 50–70% after 28 h soak; GSM 145–200 g/m² for façades. Methods reference ISO 3341 (yarn tensile), ISO 1887 (sizing), and ASTM D5035 (fabric tensile), while ETICS performance aligns with EAD 040083 (ex‑ETAG 004).
Vendor snapshot (quick, imperfect, but practical)
| Vendor | Strengths | Watch‑outs |
|---|---|---|
| Hongke (Anping, Hebei) | Solid 788/high‑speed platforms, easy spares, local service, honest output ratings | Lead time can stretch in peak season |
| Vendor A | Very high speed, strong PLC options | Higher cost, proprietary parts |
| Vendor B | Budget friendly, decent for 145 g/m² | Less stable on heavy marble mesh |
Customization that actually helps
Width up to 2.5 m, mesh openings 4×4 to 10×10 mm, GSM 125–330, AR‑glass content options, selvedge binding styles, and post‑coating recipes (alkali‑resistant acrylics). Many customers say the small tweak that saves them time is servo let‑off on the warp beam—surprisingly impactful on breakage rates.
Case notes from the floor
fiberglass mesh production line upgrade, Eastern Europe: swapped two legacy looms for Hongke high‑speed units; tensile post‑alkali improved from ≈1,600 to 1,850 N/50 mm; scrap down 12%. “Didn’t expect the false warp axis tuning to matter this much,” their plant manager told me.
Middle East ETICS player: diversified from 160 to 200 g/m² mesh with the same creel; CE documentation was smoother thanks to clearer test packs. Lead time was tight, but they hit the summer façade season on schedule.
Why this matters
A stable fiberglass mesh production line isn’t just about speed; it’s about repeatable tension, clean yarn paths, and coatings that survive cement alkalinity. Certifications customers typically seek: ISO 9001 for QMS, CE for machinery safety; product meshes aligned with EAD 040083 test regimes for ETICS reports.
References
- ISO 1887: Determination of sizing and finish on glass fibre yarns and fabrics.
- ISO 3341: Glass textile yarns — Determination of breaking force and elongation.
- EAD 040083-00-0404 (ex‑ETAG 004): External Thermal Insulation Composite Systems (ETICS).
- ASTM D5035: Standard Test Method for Breaking Force and Elongation of Textile Fabrics (Strip Method).
