The Fiberglass Mosquito Net Machine represents a cutting-edge solution for producing high-quality fiberglass mesh used in window screens, mosquito nets, and industrial applications. This article explores the technical specifications, operational advantages, and real-world applications of this advanced machinery, while also highlighting the expertise of its manufacturer, Anping Hongke Wire Mesh Machinery Factory.
Read More About fiberglass yarn coating machine
Overview of the Fiberglass Mosquito Net Machine
The Fiberglass Mosquito Net Machine is a complete production line designed to manufacture durable, aesthetically pleasing mesh products. It integrates multiple specialized machines, including the PVC coating machine, warping machine, weaving machine, shaping machine, and mesh quality inspection machine. Each component is engineered to ensure precision, efficiency, and scalability in production.
Key Components and Technical Specifications
1. Fiberglass Yarn PVC Coating Machine
The fiberglass yarn PVC coating machine is a critical component that enhances the mechanical properties of glass fiber yarn. By applying a PVC resin coating, this machine improves the tensile strength, flexural strength, and surface finish of the yarn, making it suitable for demanding applications.
Read More About spinning and weaving machine
Technical Parameters:
- Machine dimensions: 26 meters (length) × 2 meters (height) × 1.8 meters (width)
- Power consumption: 18 kW
- 24-hour output: 800 kg (28-30 threads)
2. Warping Machine
The warping machine ensures uniform winding of glass fiber yarn onto the warp shaft. This process is essential for maintaining consistent tension and arrangement, which are critical for high-quality weaving.
Main Models: 260 Type, 280 Type, 320 Type
| Parameter | Details |
|---|---|
| Machine Size | L4.2m × W1.75m × H1.25m |
| Power | 15 kW |
| Weight | 2 tons (excluding yarn rack) |
| Winding Speed | 800-1200 meters per hour |
| Main Advantages | High stability, high automation, simple operation, uniform warp tension, high output |

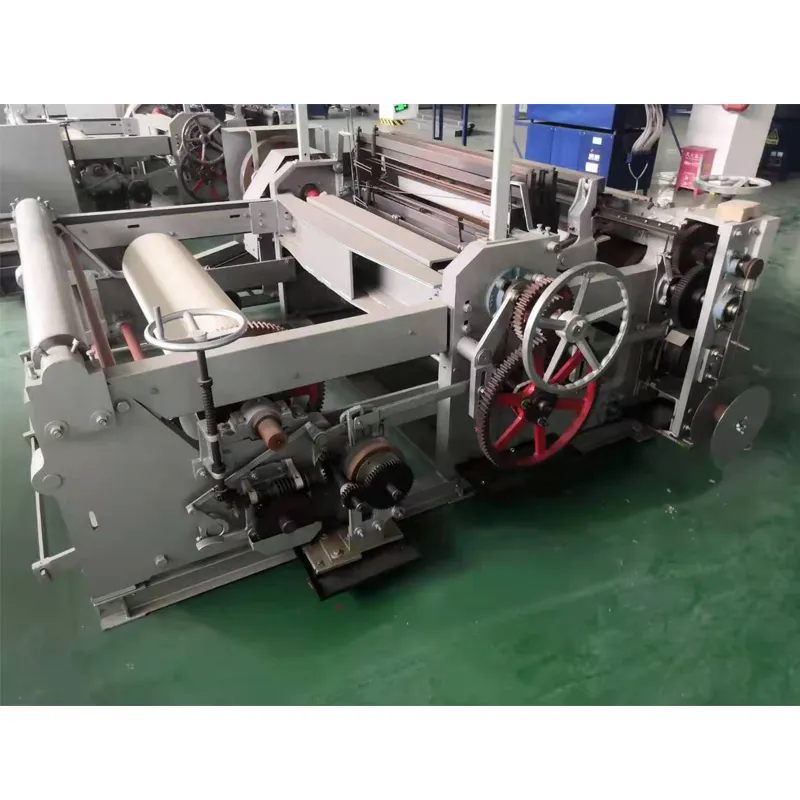

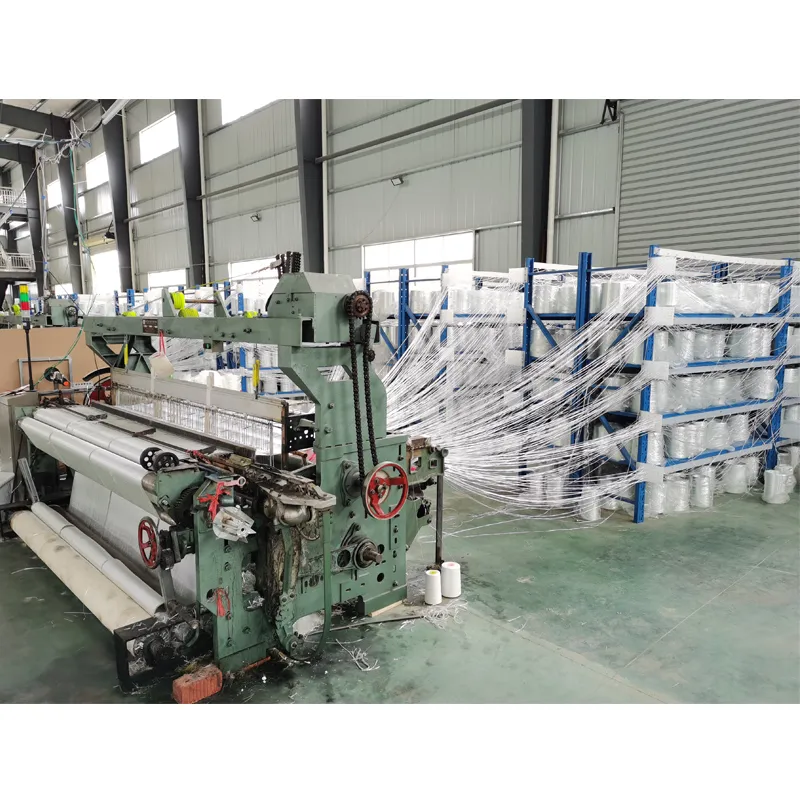

3. Weaving Machine
The weaving machine produces flat, square mesh screens by interlacing warp and weft yarns. Advanced features like electronic warp sending and winding ensure precision and efficiency.
| Parameter | Details |
|---|---|
| Machine Size | L4.2m × W1.8m × H1.45m |
| Power | 1.5 kW |
| Weight | 1.8 tons |
| Speed | 135-165 times per minute |

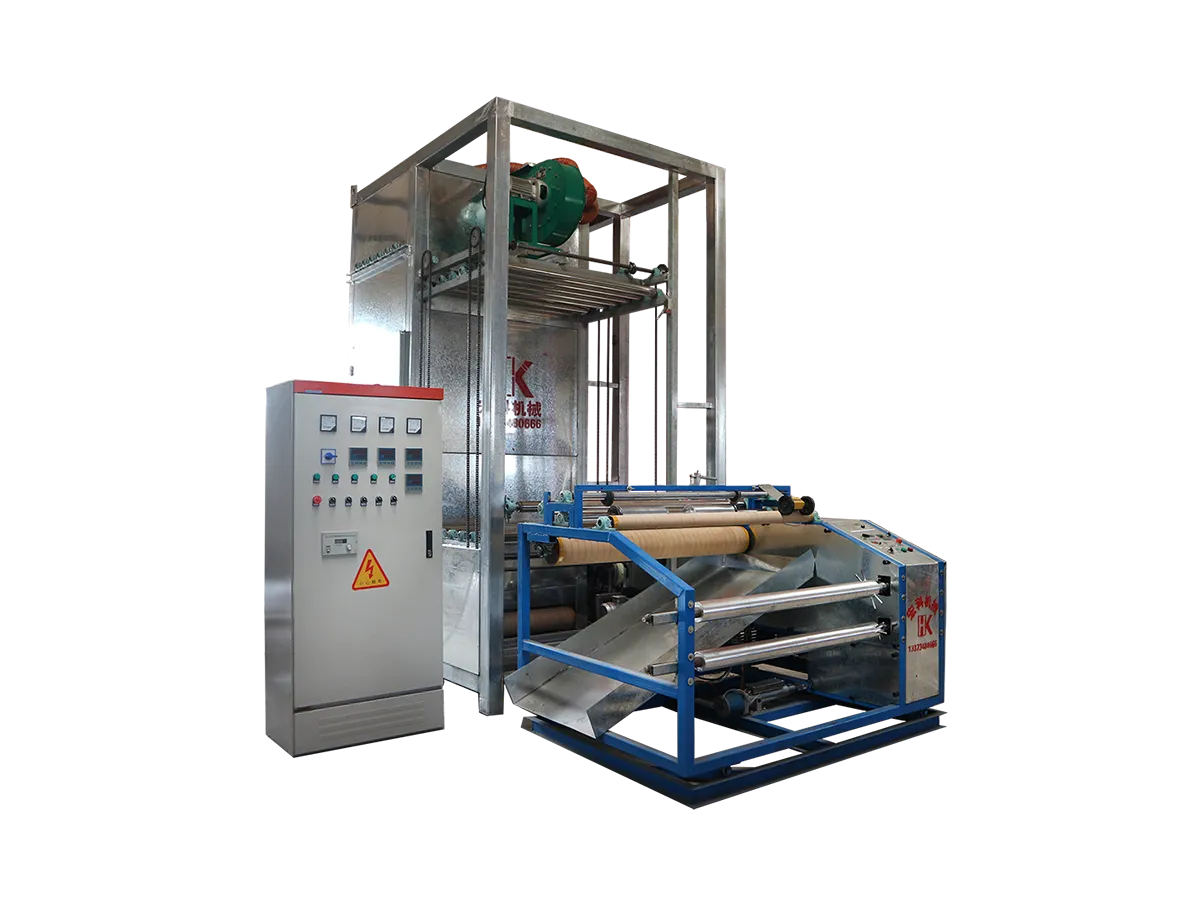

4. Coating Machine
The coating machine uses high-temperature shaping to bond warp and weft yarns, enhancing the mesh's strength, durability, and flatness. This machine is equipped with four ovens for magnetic powder winding, achieving a production rate of 2000-2200 meters per hour.
Read More About fiberglass mesh machine
5. Mesh Quality Inspection Machine
This machine ensures the final product meets quality standards by monitoring mesh length, density, and other critical parameters. Key specifications include:
- Width: 2 meters
- Power: 2.2 kW
- External Dimensions: 3100 × 920 × 1550 mm
- Gross Weight: 500 kg
- Capacity: Supports 8 sets of weaving machines
Applications and Industry Relevance
The Fiberglass Mosquito Net Machine is widely used in the production of mosquito net knitting machines and mosquito net weaving machines. Its applications extend to:
- Window Screens: High-strength, weather-resistant screens for residential and commercial buildings.
- Industrial Mesh: Used in filtration, construction, and agricultural sectors.
- Custom Mesh Solutions: Tailored to meet specific requirements for durability and aesthetics.
Advantages of the Fiberglass Mosquito Net Machine
The system offers several benefits, including:
- Enhanced Durability: PVC-coated yarns resist UV degradation and mechanical stress.
- High Efficiency: Automated processes reduce labor costs and increase output.
- Consistent Quality: Precision engineering ensures uniform mesh patterns and tension.
- Scalability: Modular design allows for expansion to meet growing production demands.
Company Background: Anping Hongke Wire Mesh Machinery Factory
Founded in Anping Hongke Wire Mesh Machinery Factory, the company specializes in manufacturing industrial machinery for mesh production. With years of experience, the factory has established itself as a leader in providing reliable, high-performance solutions for the textile and construction industries.
Industry Standards and Certifications
While the National Institute of Standards and Technology (NIST) does not directly certify this specific machinery, its role in establishing measurement standards is critical for ensuring the accuracy and reliability of industrial equipment. According to NIST, "Precision in manufacturing processes is essential for maintaining product quality and consistency" (NIST, 2023).
Conclusion
The Fiberglass Mosquito Net Machine is a testament to the advancements in industrial machinery, offering a robust solution for producing high-quality mesh products. With its advanced technical specifications, efficient operation, and reliable manufacturer, this system is ideal for businesses seeking to enhance productivity and product quality.
References
National Institute of Standards and Technology (NIST) (2023). "Precision in Manufacturing Processes." Retrieved from https://www.nist.gov/
