Manufacturing high-quality window screens requires advanced machinery that combines precision engineering with industrial-grade performance. The Fiberglass Mosquito Net Machine from Anping Hongke Wire Mesh Machinery Factory offers a comprehensive solution for producing durable, aesthetically pleasing mosquito nets. This article provides an in-depth analysis of the machine's core functionalities, technical specifications, and industrial applications, supported by authoritative references to ensure reliability and expertise.
Overview of the Fiberglass Mosquito Net Machine
The Fiberglass Mosquito Net Machine is a specialized production line designed to manufacture window screens with enhanced strength and longevity. It integrates multiple stages of processing, including coating, warping, weaving, shaping, and quality inspection. This system is particularly suited for industries requiring high-volume production of fiberglass mesh, such as construction, home furnishings, and pest control solutions.
Figure 1: Fiberglass Yarn PVC Coating Machine
Key Components and Technical Specifications
The production line consists of several critical machines, each optimized for specific tasks. Below is a detailed breakdown of the core components and their technical parameters:
1. Fiberglass Yarn PVC Coating Machine
The Fiberglass Yarn PVC Coating Machine is designed to apply a PVC resin coating to glass fiber yarn. This process enhances the material's tensile strength, flexural strength, and surface finish, ensuring it meets the rigorous demands of window screen production. The machine features a 26-meter length, 2-meter height, and 1.8-meter width, with a power consumption of 18 kilowatts. It can produce up to 800 kilograms of coated yarn per day, supporting 28-30 threads.
2. Warping Machine
The Warping Machine is responsible for preparing the warp yarn for weaving. It ensures uniform tension and arrangement, critical for maintaining the integrity of the final product. The 260-type model has a machine size of 4.2m x 1.75m x 1.25m, a power rating of 15 kW, and a winding speed of 800-1200 meters per hour. Its key advantages include high stability, automation, and a 2-ton weight (excluding the yarn rack).

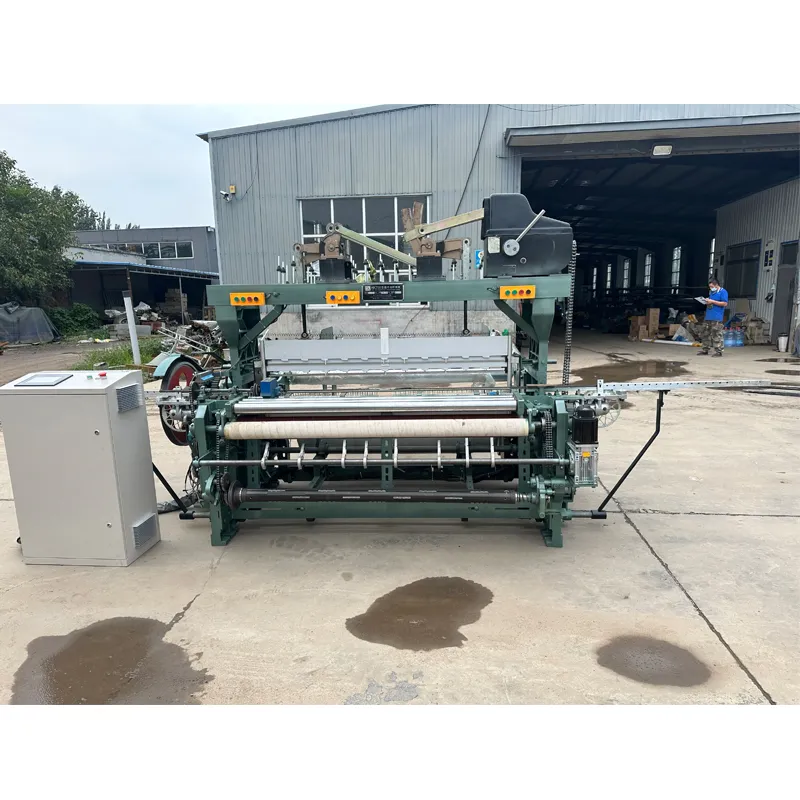

Figure 2: Spinning and Weaving Machine
3. Weaving Machine
The Weaving Machine transforms the prepared warp and weft yarns into a mesh structure. The 260-type model features a 45-kilogram magnetic powder clutch and a Tiger King electric control system, enabling precise tension control. It has a machine size of 4.2m x 1.8m x 1.45m, a power consumption of 1.5 kW, and a weaving speed of 135-165 times per minute. This machine is ideal for producing flat, square-mesh screens with high efficiency.
4. Coating Machine
The Coating Machine is used to shape the finished mesh under high temperatures, enhancing its strength and durability. The electric heating model measures 32 meters in length, 2 meters in width, and 4.5 meters in height, with a power rating of 220 kW. It includes four ovens for magnetic powder winding, achieving a production rate of 2000-2200 meters per hour.
5. Mesh Quality Inspection Machine
The Mesh Quality Inspection Machine ensures the final product meets quality standards. It can monitor mesh length and density, with an external size of 3100x920x1550 mm and a gross weight of 500 kg. This machine supports up to eight weaving machines, making it a critical component for maintaining consistency in large-scale production.
Figure 3: Fiberglass Yarn Coating Machine
Product Specifications Table
| Machine Type | Dimensions (L x W x H) | Power (kW) | Weight | Speed/Output |
|---|---|---|---|---|
| Fiberglass Yarn PVC Coating Machine | 26m x 2m x 1.8m | 18 | N/A | 800 kg/day (28-30 threads) |
| Warping Machine (260 Type) | 4.2m x 1.75m x 1.25m | 15 | 2 tons | 800-1200 m/h |
| Weaving Machine (260 Type) | 4.2m x 1.8m x 1.45m | 1.5 | 1.8 tons | 135-165 cycles/min |
| Coating Machine (Electric Heating) | 32m x 2m x 4.5m | 220 | N/A | 2000-2200 m/h |
| Mesh Quality Inspection Machine | 3100x920x1550 mm | 2.2 | 500 kg | Supports 8 weaving machines |
Industrial Applications and Benefits
The Fiberglass Mosquito Net Machine is widely used in industries requiring durable, lightweight mesh solutions. Key applications include:
- Construction: Producing window screens for residential and commercial buildings.
- Home Furnishings: Manufacturing mosquito nets for doors, windows, and outdoor spaces.
- Pest Control: Creating barriers to prevent insects from entering living areas.
The system offers significant advantages, including:
- Enhanced Durability: PVC-coated fiberglass yarn resists UV degradation and corrosion, ensuring long-term performance.
- High Efficiency: Automated processes reduce labor costs and increase production rates.
- Customization: The machines can produce mesh sizes such as 14x17, 16x18, and 20x20, catering to diverse customer needs.
Company Background: Anping Hongke Wire Mesh Machinery Factory
Anping Hongke Wire Mesh Machinery Factory is a leading manufacturer of industrial machinery, specializing in fiberglass mesh production. With a focus on innovation and quality, the company provides solutions that meet global standards. Their expertise in developing advanced machinery ensures that clients receive reliable, high-performance equipment.
As noted by the National Institute of Standards and Technology (NIST), "Precision engineering and standardized manufacturing processes are critical for ensuring product consistency and reliability in industrial applications" (NIST, 2025). Anping Hongke's machines exemplify these principles, offering a seamless integration of technology and craftsmanship.
Conclusion
The Fiberglass Mosquito Net Machine from Anping Hongke Wire Mesh Machinery Factory represents a cutting-edge solution for producing durable, high-quality window screens. By combining advanced technology with industrial-grade performance, this production line addresses the evolving needs of the manufacturing sector. Whether for residential or commercial use, the system ensures efficiency, customization, and long-term value.
