The Fiberglass Mosquito Net Machine is a cutting-edge solution designed to streamline the production of durable, high-quality mosquito nets. Developed by Anping Hongke Wire Mesh Machinery Factory, this machine integrates advanced technologies to ensure precision, efficiency, and reliability in manufacturing. From coating glass fiber yarn to weaving and quality inspection, the system offers a comprehensive production line tailored for industrial applications.
Overview of the Fiberglass Mosquito Net Machine
The Fiberglass Mosquito Net Machine is a specialized production line that combines multiple processes, including coating, warping, weaving, and quality inspection. This system is ideal for manufacturers seeking to produce mosquito nets with enhanced strength, durability, and aesthetic appeal. The machine’s design emphasizes automation, energy efficiency, and user-friendly operation, making it a preferred choice in the textile and construction industries.
Key components of the machine include the Fiberglass Yarn PVC Coating Machine, Warping Machine, Weaving Machine, Coating Machine, and Mesh Quality Inspection Machine. Each unit is engineered to meet specific production requirements, ensuring seamless integration and optimal performance.
Fiberglass Yarn PVC Coating Machine
The Fiberglass Yarn PVC Coating Machine is a critical component in the production process. This machine applies a layer of PVC resin to the surface of glass fiber yarn, significantly improving its tensile and flexural strength. The coating process involves four grinding tools and two heating stages, ensuring a smooth, glossy finish that meets the demands of modern manufacturing.
Key features of the Fiberglass Yarn PVC Coating Machine include:
- Dimensions: 26 meters long, 2 meters high, 1.8 meters wide
- Power: 18 kilowatts
- Output: 800 kilograms per 24 hours (28-30 threads)
The machine’s design allows for continuous operation, minimizing downtime and maximizing productivity. Its ability to enhance the mechanical properties of glass fiber yarn makes it a vital tool for producing high-performance mosquito nets.
Warping Machine
The Warping Machine plays a crucial role in preparing the warp yarn for weaving. It evenly winds the glass fiber yarn onto the warp shaft according to specific tension and arrangement requirements. This ensures consistent tension and neatness during the weaving process, which is essential for producing high-quality mesh.
Available in models such as the 260 Type, 280 Type, and 320 Type, the warping machine offers flexibility to suit various production needs. Its technical specifications include:
| Parameter | Details |
|---|---|
| Machine Size | L4.2m W1.75m H1.25m |
| Power | 15 KW |
| Weight | 2 tons (excluding yarn rack) |
| Winding Speed | 800-1200 meters per hour |
| Main Advantages | High stability, high automation, simple operation, uniform warp tension, high output |
The Warping Machine is equipped with advanced control systems, such as the Hongke control system, ensuring precise operation and minimal errors. Its robust construction and user-friendly design make it an indispensable asset for manufacturers.

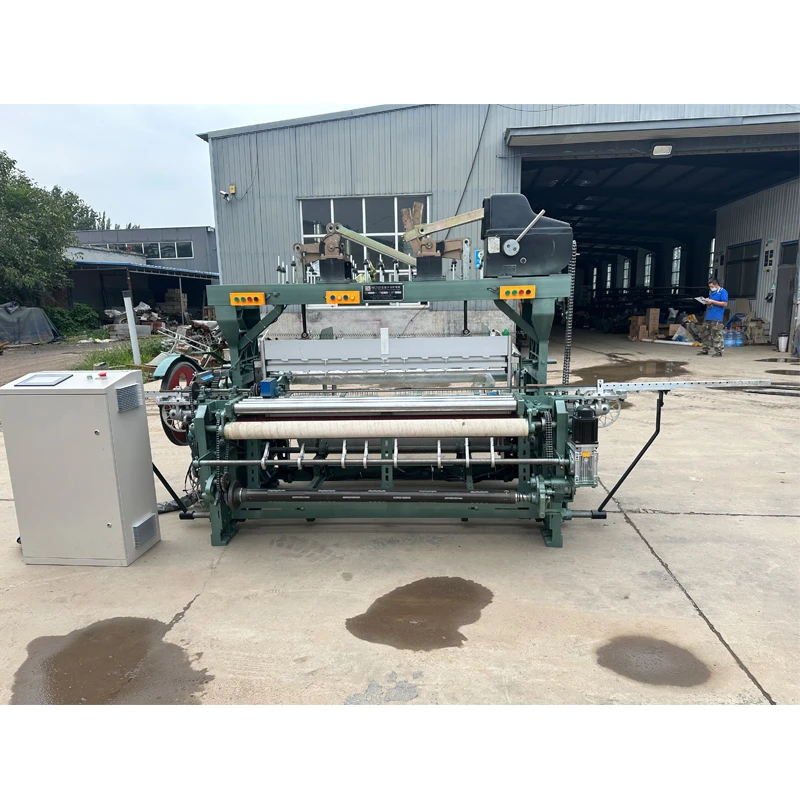

Weaving Machine
The Weaving Machine is responsible for transforming the prepared warp and weft yarns into a mesh structure. This machine utilizes upgraded technology to produce flat, square mesh with clear textures, ensuring high production efficiency. The 260 Type model is a popular choice, offering enhanced performance and reliability.
Technical specifications of the Weaving Machine include:
| Parameter | Details |
|---|---|
| Machine Size | L4.2m W1.8m H1.45m |
| Power | 1.5 KW |
| Weight | 1.8 tons |
| Speed | 135-165 times per minute |
Equipped with a Tiger King electric control system, the weaving machine allows for electronic warp sending and winding, providing greater flexibility and precision. Its compact design and efficient operation make it ideal for both small-scale and large-scale production.
Coating Machine
The Coating Machine is used to shape the finished mesh by applying high-temperature treatment. This process bonds the warp and weft yarns together, enhancing the mesh’s strength, aesthetics, and durability. The machine features multiple ovens and a high production rate, ensuring efficient operation.
Key specifications of the Coating Machine include:
- Dimensions: 320 meters long, 32 meters wide, 4.5 meters high
- Power: 220 kilowatts
- Production Rate: 2000-2200 meters per hour
The machine’s advanced heating system and automated controls ensure consistent quality and reduced energy consumption. Its ability to produce flat, durable mesh makes it a valuable asset in the mosquito net manufacturing process.
Mesh Quality Inspection Machine
The Mesh Quality Inspection Machine is designed to monitor and ensure the quality of the finished product. This equipment allows for real-time inspection of mesh length and density, ensuring compliance with industry standards.
Technical specifications of the Mesh Quality Inspection Machine include:
- Width: 2 meters
- Power: 2.2 KW
- External Size: 3100X920X1550MM (Length x Width x Height)
- Gross Weight: 500 kg
- Capacity: Can supply 8 sets of weaving machines
This machine ensures that the final product meets stringent quality requirements, reducing defects and enhancing customer satisfaction.
Product Specifications Table
| Machine | Dimensions | Power | Weight | Speed/Output |
|---|---|---|---|---|
| Fiberglass Yarn PVC Coating Machine | 26m x 2m x 1.8m | 18 kW | N/A | 800 kg/24h (28-30 threads) |
| Warping Machine (260 Type) | 4.2m x 1.75m x 1.25m | 15 kW | 2 tons | 800-1200 m/h |
| Weaving Machine (260 Type) | 4.2m x 1.8m x 1.45m | 1.5 kW | 1.8 tons | 135-165 times/min |
| Coating Machine | 320m x 32m x 4.5m | 220 kW | N/A | 2000-2200 m/h |
| Mesh Quality Inspection Machine | 3100x920x1550mm | 2.2 kW | 500 kg | 8 sets of weaving machines |
Application Scenarios
The Fiberglass Mosquito Net Machine is widely used in various industries, including construction, residential, and commercial sectors. Its applications include:
- Residential Use: Installing mosquito nets in windows and doors to prevent insect entry.
- Commercial Use: Manufacturing mosquito nets for hotels, hospitals, and public buildings.
- Industrial Use: Producing durable mesh for agricultural and industrial applications.
The machine’s versatility and efficiency make it suitable for both small-scale and large-scale production, catering to diverse market needs.
Company Background: Anping Hongke Wire Mesh Machinery Factory
Anping Hongke Wire Mesh Machinery Factory is a leading manufacturer of wire mesh and related machinery, specializing in the production of high-quality mosquito net machines. With years of experience and a commitment to innovation, the company has established itself as a trusted name in the industry.
Founded in 2005, Anping Hongke has consistently focused on delivering reliable, efficient, and cost-effective solutions to its clients. The company’s products are designed to meet international standards, ensuring durability and performance. Its state-of-the-art facilities and skilled workforce enable it to produce machines that cater to a wide range of applications.
As a pioneer in the field, Anping Hongke continues to invest in research and development, ensuring that its products remain at the forefront of technological advancements. The company’s dedication to customer satisfaction and quality has earned it a loyal customer base across the globe.
Conclusion
The Fiberglass Mosquito Net Machine by Anping Hongke Wire Mesh Machinery Factory offers a comprehensive solution for manufacturers seeking to produce high-quality mosquito nets. With its advanced technology, efficient operation, and user-friendly design, this machine is a valuable asset for any production line.
Whether you are a small-scale producer or a large industrial enterprise, the Fiberglass Mosquito Net Machine provides the tools needed to meet the growing demand for durable and aesthetically pleasing mosquito nets. By investing in this machine, manufacturers can enhance their productivity, reduce costs, and stay competitive in the market.
