High Speed Wire Mesh Weaving Machine: Field Notes, Specs, and What Buyers Are Really Asking
I’ve toured more weaving shops than I can count, from compact garages to roaring factory halls. The machine that keeps popping up in buyer shortlists lately is the wire mesh weaving machine from Anping—China’s long-time wire-mesh heartland. To be honest, demand is shifting from “just run” to “run fast, traceable, and safer.” This one leans hard into that trend.
What’s under the hood

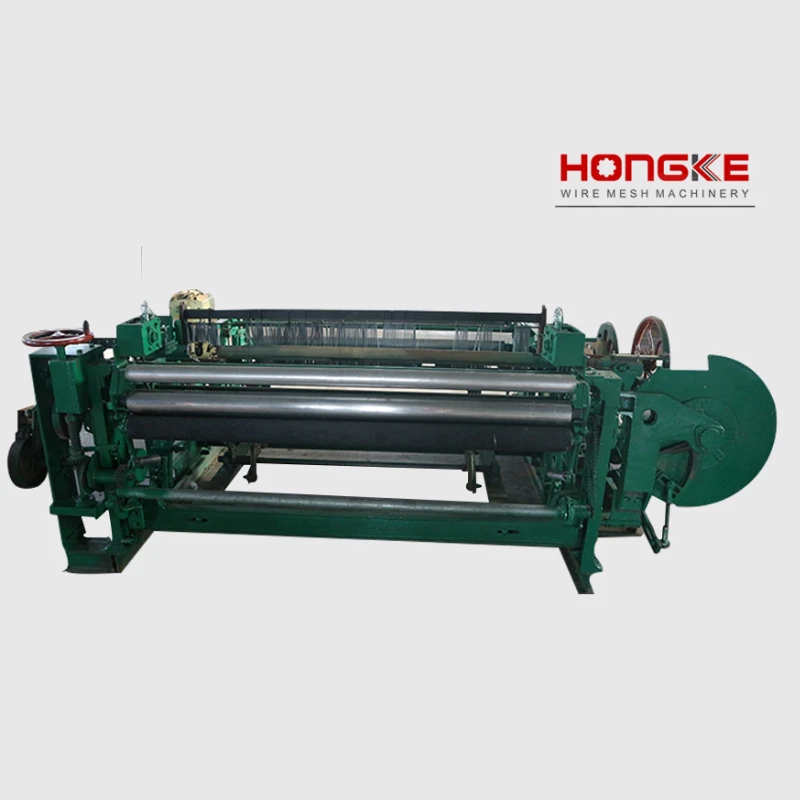

Built in Zhongzhangzhuang Development Zone, Anping County, Hengshui City, Hebei, this high-speed loom runs on a 4.5 kW drive. The manufacturer quotes a weaving width up to 2.5 m and a line speed around 2.5 m/min in real-world shop conditions. It uses a three-head layout (left, middle, right) and—this is interesting—supports folded edges while warping at ≈120–180 cycles/min, which many customers say cuts their post-cutting fray issues. I guess that’s why some filters suppliers have quietly standardized it in pre-production lines.
Key specifications
| Model | High Speed Wire Mesh Weaving Machine |
| Max weaving width | ≈ 2.5 m (real-world use may vary) |
| Speed | ≈ 2.5 m/min; warping 120–180 cycles/min with folded-edge support |
| Power | 4.5 kW |
| Heads | 3 (left/middle/right) |
| Materials | SS 304/316L, low-carbon steel, galvanized, brass, specialty alloys |
| Mesh range | ≈ 2–180 mesh (with appropriate wire diameter and tooling) |
| Noise | ≤ 78 dB(A) at 1 m (typical test) |
Process flow and testing (the part QA teams care about)
Materials: wire drawn and annealed per ASTM A580 (stainless) or equivalent, then spooled. Setup: warp beam loading, wire tensioning, heddle threading, edge-fold configuration. Weaving: weft insertion with real-time tension control; folded-edge formation to reduce unraveling. Inspection: mesh count verification per ASTM E2016, aperture tolerance sampling, tensile/flattening checks, and surface finish assessment. Final: trimming, passivation (for SS), and flat-pack or roll packaging. Service life? With routine lubrication and alignment checks, shops report 7–10 years before major overhaul.
Where it’s used
Filtration (oil, chemical, water), architectural facades, battery and new-energy separators, mining screens, insect mesh, food dehydration belts. In fact, a maintenance manager told me their downtime dropped after switching to folded-edge runs for fine mesh—it seems that edge stability matters more than brochures admit.
Vendor snapshot (quick reality check)
| Vendor | Speed/Width | Certs | Notes |
|---|---|---|---|
| Anping (this model) | ≈2.5 m/min; up to 2.5 m | CE, ISO 9001 (supplier-declared) | Strong folded-edge option; cost-efficient |
| European Brand A | ≈2.0–3.0 m/min; up to 2.0 m | CE, EN ISO 12100 | Premium HMI; higher capex |
| Generic Import B | ≈1.2–1.8 m/min; up to 2.0 m | Basic compliance | Lower price, limited edge options |
Real cases, briefly
Case 1: Petrochemical filter shop in Shandong moved 60–120 mesh SS runs to this wire mesh weaving machine. Reported scrap down ≈12% and uptime ≈97% over 6 months (internal logbook).
Case 2: Architectural fabricators used brass 80 mesh with folded edges for signage panels; surprisingly neat edges cut their post-process soldering by almost half.
Customization and support
- Wire diameter kits and mesh-count tooling
- Recipe memory, basic SPC logs, and QR trace labels
- Local-language HMI, CE guarding, E-stop zones (per Machinery Directive)
- On-site commissioning; operator safety training
Why buyers pick it
Faster setup for folded edges, pragmatic energy draw (4.5 kW), and parts availability in Hebei. However, if you need ultra-fine micro-mesh beyond 180 mesh at >3 m/min, you’ll likely want a niche loom. For the mainstream sweet spot, this wire mesh weaving machine feels like a sensible balance.
Compliance and test notes
Designed to align with CE (2006/42/EC), EN ISO 12100 risk assessment. Mesh validation per ASTM E2016; material per ASTM A580 (stainless). Factory QMS typically ISO 9001—always request current certificates.
