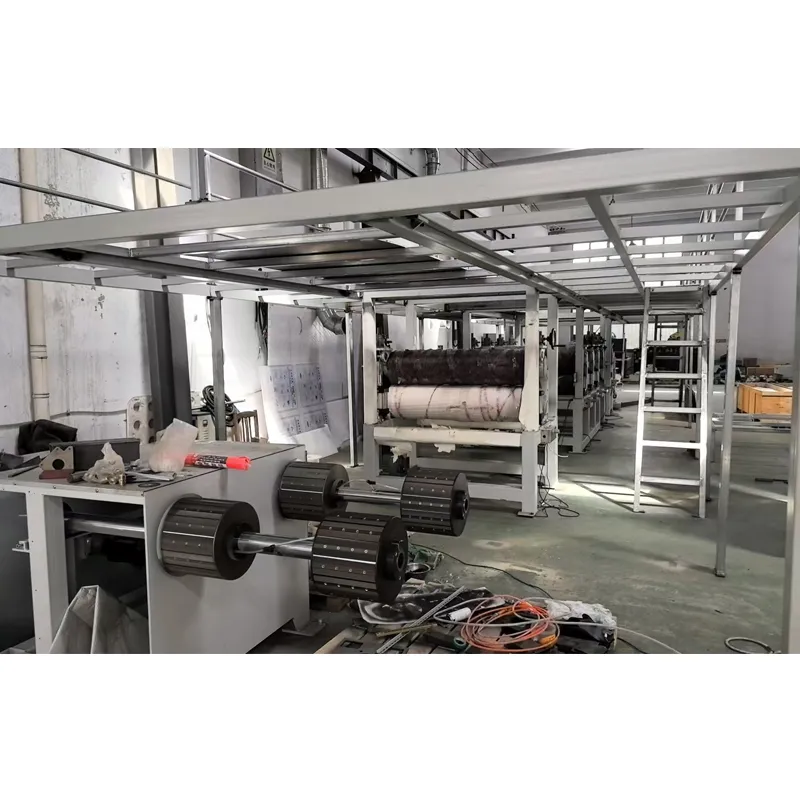

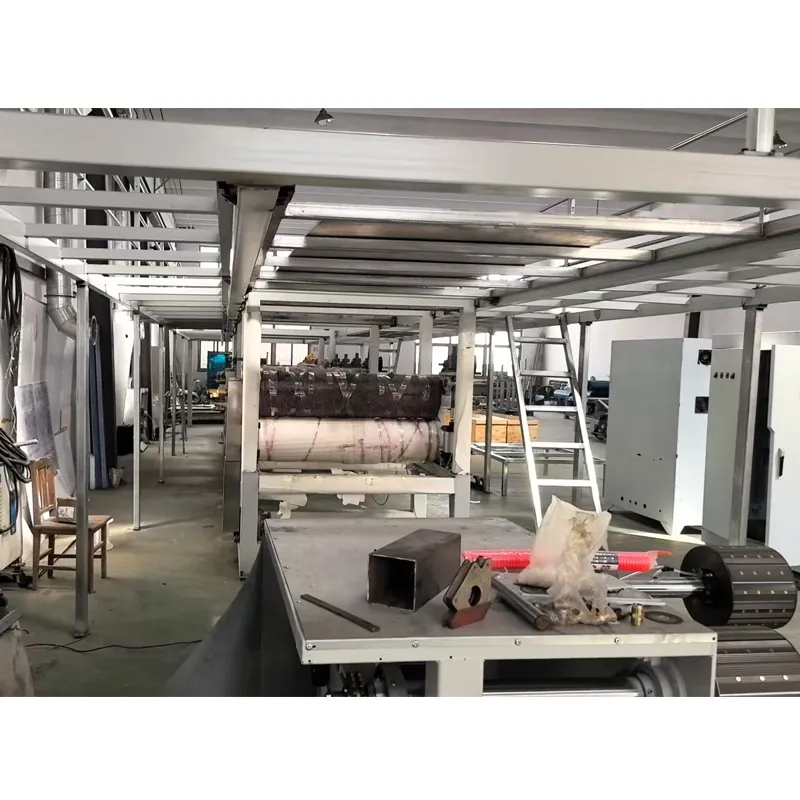

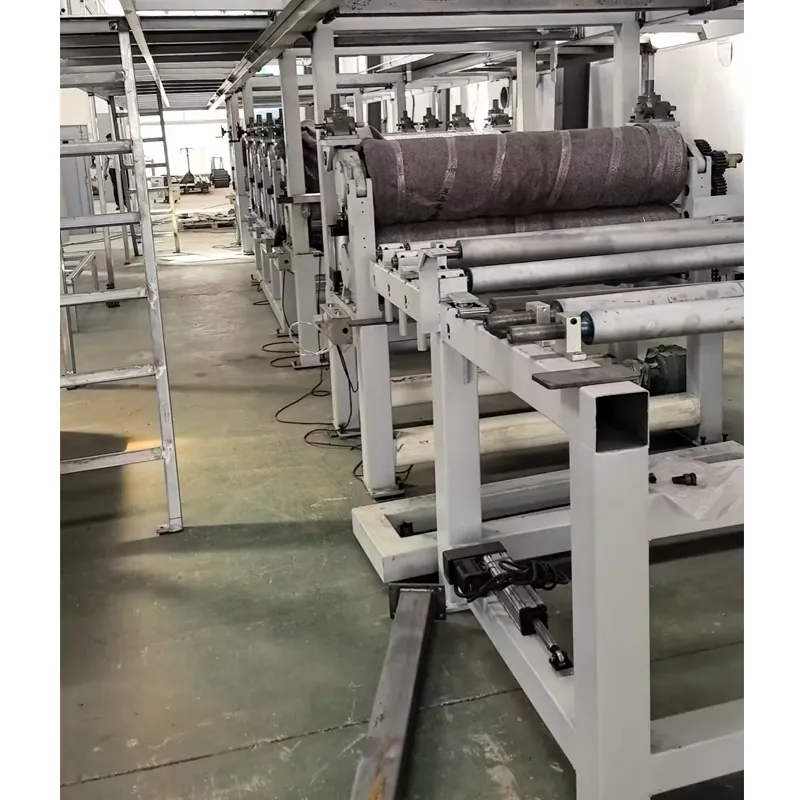

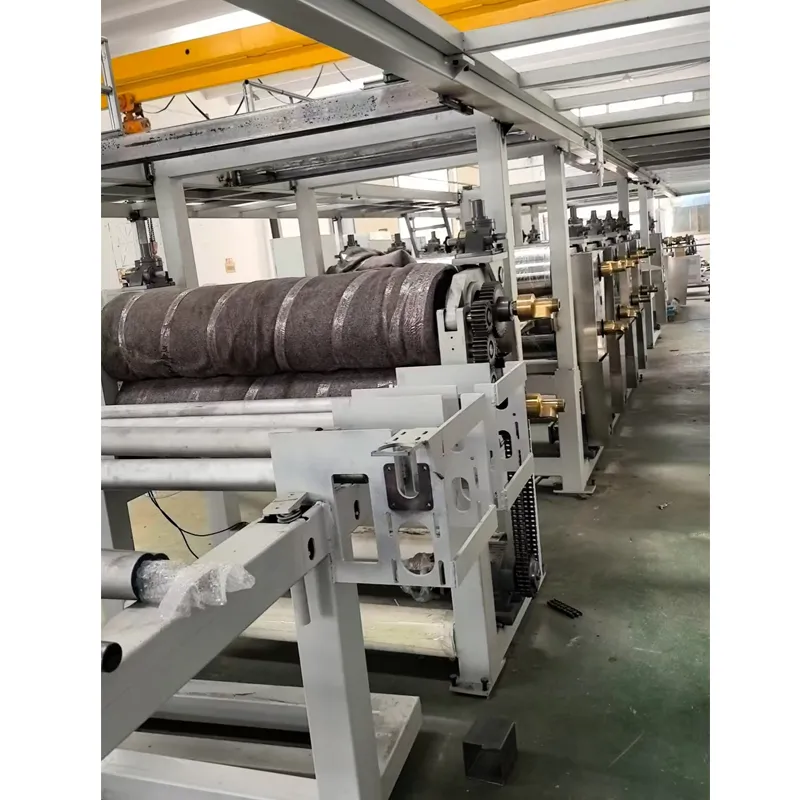

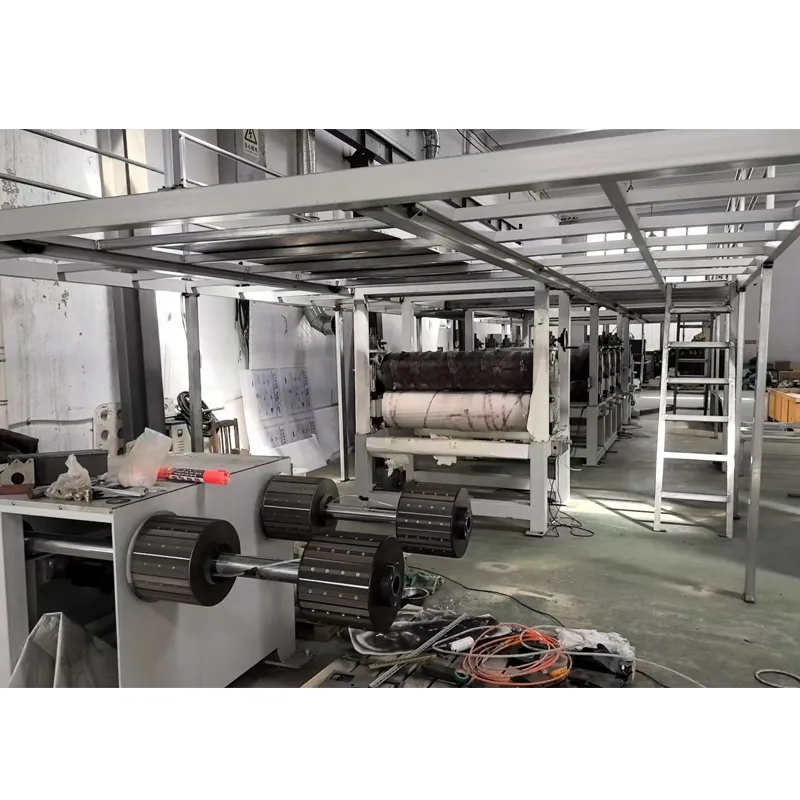

Carbon fiber prepreg is a composite of epoxy resin onto carbon fibers through high-pressure and high-temperature technology. Composite materials made from materials such as carbon fiber yarn, epoxy resin, release paper, etc., processed through coating, hot pressing, cooling, laminating, and coiling processes are called carbon fiber prepreg, also known as carbon fiber prepreg.
1.
| Immersion weight: | 150-500g/㎡ |
| Immersion width: | 1270mm |
2.
| Mechanical: | Wheel surface width 1200mm; |
| Mechanical speed: | 1-20m/min; |
| Roller: | φ350， The diameter requirement for all solid heated metal rolling rolls in cold state is φ 400 ± 0.05mm; The same temperature thermal state diameter error is ± 0.05mm. |
3.Public Equipment
| Wheel surface temperature: | Max 150 ℃ (provide mold temperature unit); |
| Wheel pressure: | Max.60 kg/cm； |
| Power supply: | 3-phase 380V 50HZ; |
| Pressure source: | 7kg/cm ²; |
| Chilled water: | 2-3kg/cm ², providing two sets of cooling water systems (outdoor type) for 5 ℃ -12 ℃ and 8 ℃ -18 ℃. |
4.Equipment Layout
The power drive part is located on the right side of the feeding end (right type) (confirmed according to the layout diagram of Party A). The equipment layout reference diagram is as follows, and the specific layout diagram will be confirmed after detailed design.
Equipment Composition
1.Dual station automatic edge searching carbon fiber bidirectional cloth unwinding device
2.Flat heating device
3.Roll up and down resin film paper
4.Upper and lower PE film winding
5.Compression opening fiber wheel set
6.Compression impregnation device
7.Heating and cooling device
8.Roll up and down release paper
9.Roll the release paper
10.Dual station PE film unwinding
11.Extraction and bonding device
12.Meter counting device
13.Finished product roll one
14.Mold temperature machine device
15.Cooling water system
16.Other
17.Drive and electronic control system
18.Technical requirements related to MES
