Drawing wire machine:After heating and melting, the wire drawing machine uses a mold to extrude plastic wire blanks. After passing through a stretching device, the wire is stretched to the specified fineness, making it have better strength, bending resistance, and roundness. It is suitable for weaving. The wire drawing machine is 25 meters long, 2 meters high, and 1.5 meters long. The main motor is 11 kW variable frequency, with one traction and 1.5 kW variable frequency seven rods 273 * 12 and four kW variable frequency seven rods 273 * 10.
The wire winding machine is equipped with dual axis winding power and 1.5 kW speed regulation. Two extruders are equipped with screw 65 type and electromagnetic heating. The hot water tank is 24 kW.. Electromagnetic heating is 10 kW. Cold water is provided. The width is 500 * 1000. The large axis wire splitting machine is equipped with 100 units of 0.37 kW torque motor and 0.75 kW RV small axis wire splitting machine. Total head weight 3 Produce 1.1 tons 24 hours a day for 5 tons Design power of 63 kW (requires mixer and winding shaft).
A warping machine is a machine that evenly one time wraps PE fibers in a certain arrangement order and tension requirements on the warp axis to provide warp yarn for the loom, ensuring that the warp tension is evenly arranged and neat during the weaving process. Main models; 280 type, 330 type, 430 type, 540 type.

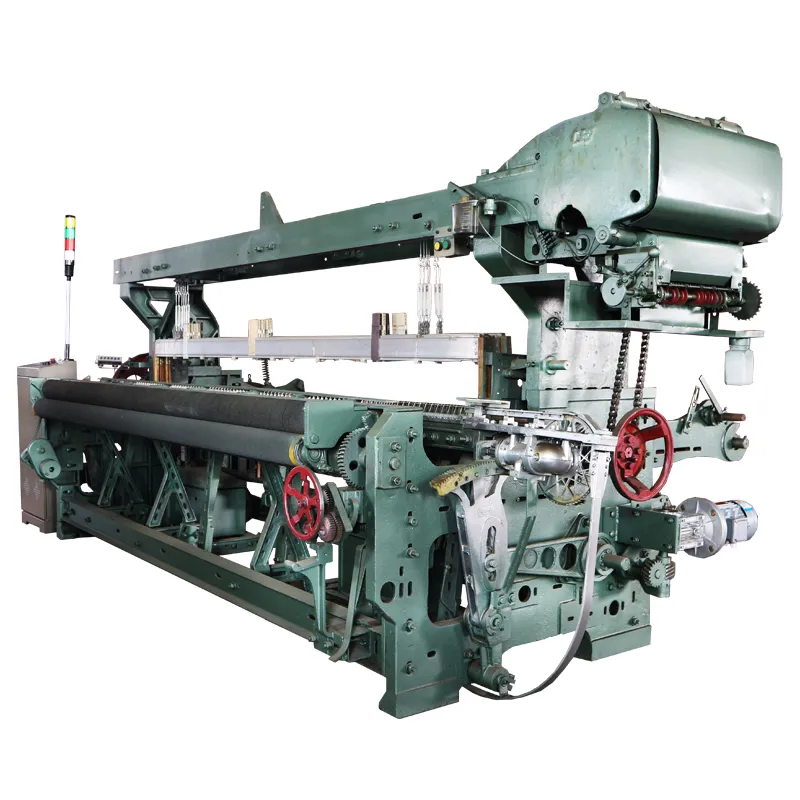

The weaving machine weaves warp and weft wires into insect proof nets, while the Hongke grid weaving machine improves production efficiency through technological upgrades. The net surface is flat and can produce mesh holes of 50-6 mesh, 10 silk, and 60 silk. The main models are as follows:; 230 Type 260 Type 280 Type 330 Type 430 Type 540 Type 330 Type Configuration Table; Length 6 meters, width 1.8 meters, height 1.8 meters, power 1.5 kilowatts, weight 2 tons, beating frequency 130-150 times per minute.
If you have any camping barbeque equipment inquiry, please feel free to contact us.
PE PPE PET Insect Window Screen Machine

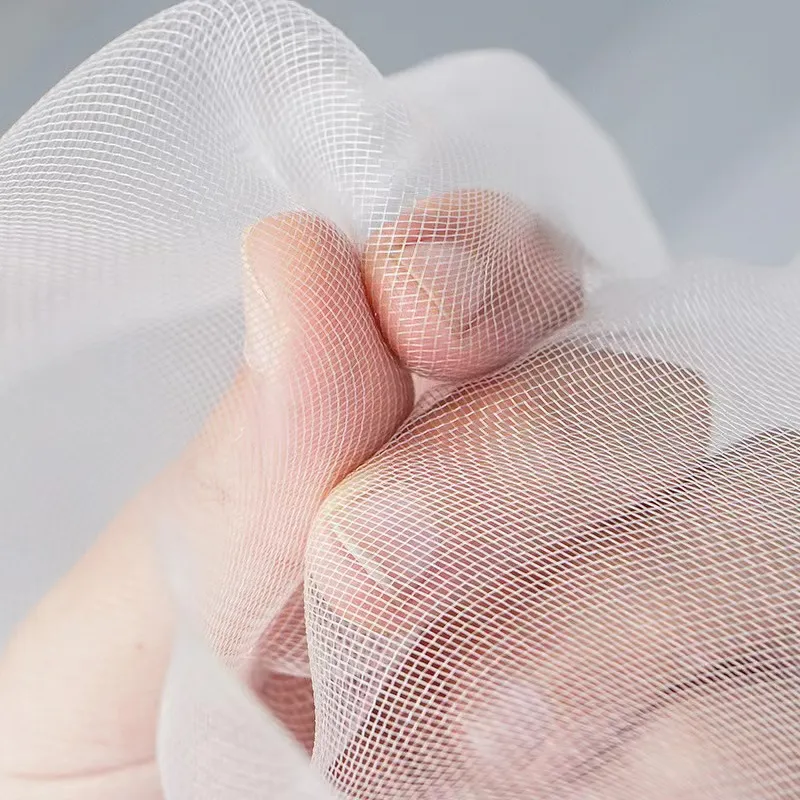

PE insect proof machine is mainly used for agricultural insect prevention, building safety nets, aquaculture nets, grape drying, and other equipment.
To make insect window screen ,it need drawing wire machine,warping machine,weaving machine.
Carbon Fiber Mesh Rapier Loom
The carbon fiber mesh machine is specialized equipment designed for manufacturing carbon fiber mesh. It integrates advanced technologies and precise mechanical structures to ensure the high - quality production of carbon fiber mesh.
It can be adjusted to produce different types of carbon fiber mesh with various specifications, such as different mesh densities, fiber orientations, and widths, to meet the diverse needs of different applications.
Carbon Fiber Prepreg Machine
This device is designed for pre impregnating carbon fiber mesh . This equipment is a continuous rolling equipment with automatic winding and unwinding, which uses tension and correction control to neatly wind the material onto the reel.
Full Automatic Wire Mesh Weaving Machine
The new type of weaving system adopts PLC programming and a mobile module control system ， featuring excellent energy- saving performance and equipped with a fully evolved Servo Dobby Shedding design, representing the advanced mode of future factory management.
Stainless Steel Wire Mesh Weaving Machine
Weaving Range:8 to 600mesh per inch but also special kinds up to 2600mesh by the supply of change wheels for the regulators
Aluminum Wire Mesh Weaving Machine
The aluminum alloy window screen weaving machine is mainly composed of a weaving machine and a warping machine。It is an essential piece of equipment in the window - screen manufacturing industry, designed to efficiently and precisely produce high - quality aluminum window screens.
Fiberglass Mesh Machine
To make fiberglass mesh,you need three kinds machines:warping machine,weaving machine and gule coating machine.it has 1m,15m,2m width and other size.
Fiberglass mesh is often applied in construction for wall reinforcement, especially in external wall insulation systems. It enhances the stability and strength of the wall surface.
